Simplicate, Then Add Lightness*: 1973 Peugeot Mixte Style


I always swear I’m never building another French bike, then something happens and I find myself building another French bike.

pug_frame-whl

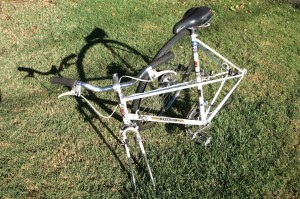

Here’s what I got for $20USD at Denio’s flea market but it’s less than it seems. The seat, shifters, and steel wheel, gear cassette and tire weren’t usable; the Simplex dérailleurs were toast and rear center-pull brake as well.

pug-non-drvsid

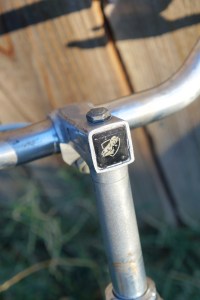

Good alloy quill-stem with Peugeot lion logo and almost flat handlebar. I added soft black ribbed rubber grips, for extra comfort. Steering head bearings and races sound OK so I didn’t touch (French ergo nonstandard).

pug-rt-rer

But no replacement cotter pins could be found for the massively heavy steel cranks. I had to hammer out the old pins to clean, lube and adjust the cup-and-cone bottom bracket  and nobody in the Sacramento area has replacements (French, remember?).

pug_full-stnd

Even half built the delicate spidery beauty helps me fight through the setbacks.

By blind luck the only spindle I had in my parts bin fit pretty well in the bottom bracket shell being only slightly short, and the ball bearing cages and balls fit perfectly.

pug_quilllogo

I had to switch to a BB lock ring with threads out to the edge but managed to adjust bearings correctly and firmly. The modern square-taper ends allowed me to fit wonderful Shimano 600 alloy cranks and spider, the best of that era.

pug_parts

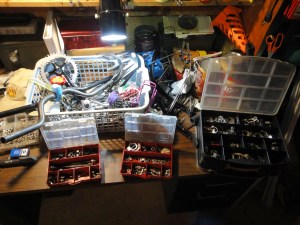

You Need All These Parts and More to Build Vintage Bikes

pug_parts-cls

jam_shop

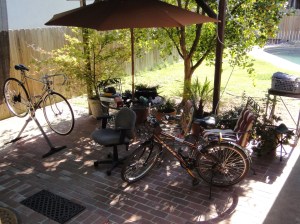

My Shade-tree Shop (Acer buergerianum)

Original stock Mafac “Racer” front center-pull  brake could still be used but the rear is a Weinmann replacement. Note use of cheap ‘wire-nut’ to terminate cable in lieu of store-bought fitting.

pug-hdbdg

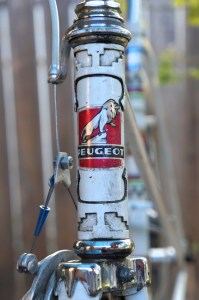

I’ve never seen lugs in this ‘Aztec Temple’ style before and it’s striking, like Peugeot’s ubiquitous lion logo.

pug_logo-seatube

The stair-step or crenelations motif is continued on the seat post with a gold instead of a silver lion, on a background more orange than the red head-badge.

pug_horz-drpt

Bikes built past the 1980s generally used vertical drop-outs, the hooked part of the frame that holds the wheel, making them difficult to convert to single-speed/fixie bike. The long horizontal drop-outs on this frame make fitting and adjusting the wheel easy.

pug_logotube

pug_sticker

Sold in San Jose March, 1973, by The Bicycle Tree

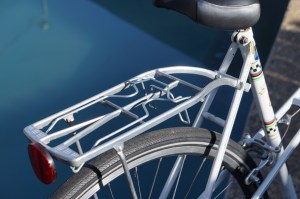

I try to use the correct period cargo rack when I have them. This aluminum Swiss Pletscher rack was the light and strong one to use in those days and works just as well these days.

dsc03376

The round CatEye reflector adds to the retro look.

pug-kikstnd

Kickstand is Esge Pletscher.

pug-side-rt

Tires are CST kevlar Cuidad with reflective stripe in 32-622. Rear wheel is a Shimano FH-FM30 free-hub single-speed conversion with 17-tooth cog. Front is a 700c Stay-Tru with anodized skewer.

pug-crnk

Shimano 600 crank-set with too-stout 40-tooth chain-ring. I’ll need to buy a 38-tooth chain-ring to make the bike usable (sellable). Japanese SR pedals. Bike turned out to weigh 28 pounds (12.7 kg).

pug-bars-seat-rack

Imagine my tightwad’s glee at building a complete bike using only a $20 flea market frame and parts I already had (forgetting I bought the parts in the first place).

Then I rode it. Uh oh, geared far too strong, I had to lug even on level ground. Now I’ll have to spend $10 bucks at the flea market for a 36 or 38-tooth chain-ring. Drats, the miser defeated again!

pug_hdbdg1

I hadn’t planned to build another bike, much less a difficult French one, but a beautiful cheap frame and a bunch of bike parts in my garage–and Viola!  A fair French beauty of the 1970s is fit to ride again, like Brigitte Bardot! The French have a certain je ne sais quoi, (“I don’t know what).

*Simplicate, then add lightness…Colin Chapman
