Behringer Bass Refurb: Part II

dsc06376
Here’s the Behringer 4-string bass I bought for $75 USD and posted about here.

dsc06361

Novice bass tech was unclear on the string tree concept. Original owner probably stripped the truss rod and mis-strung the treble strings at the same time. Amateur luthiers, bah.

It sounded nice but the truss rod hex adjuster was non-op. I ordered a Canadian maple Kmise replacement J-style neck from China via eBay for $36 USD, free shipping.
DSC06447

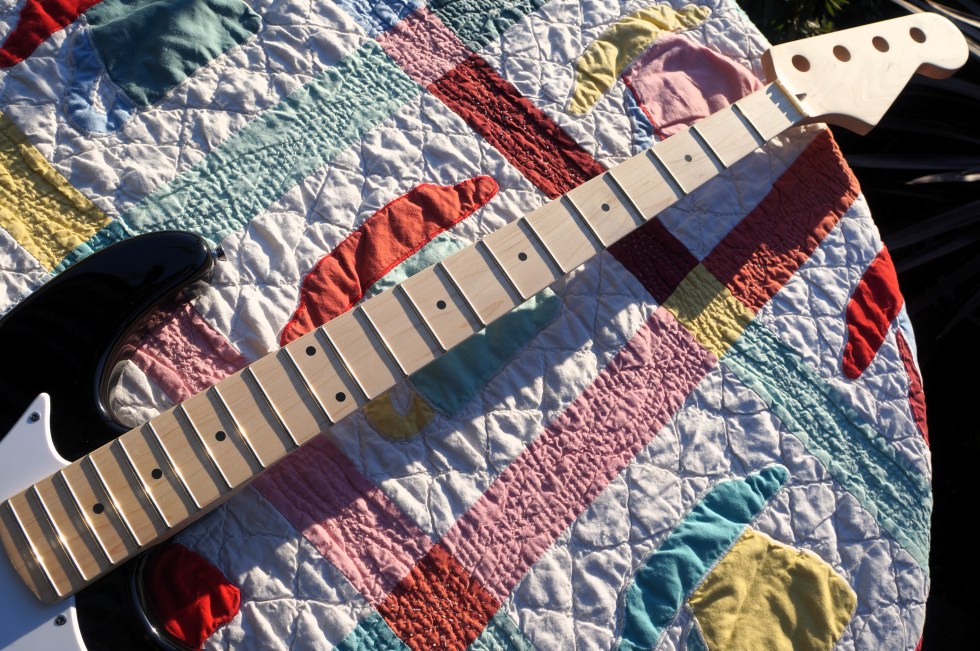

It took three weeks and arrived in a dented box. To my neighbor’s house. Oh, well. It proved to be unhurt and exactly as pictured on line when I finally got it. Simply beautiful.

DSC06438

I first learned on narrow neck Ibanez basses so the Kmise replacement is Jazz bass style with the narrower nut.

How the manufacturers can make money by buying Canadian maple wood; shipping it to China for shaping; shipping it to Flushing, New York; and then shipping it to me in California, I do not know. Volume? Low overhead? Slave labor?

DSC06444

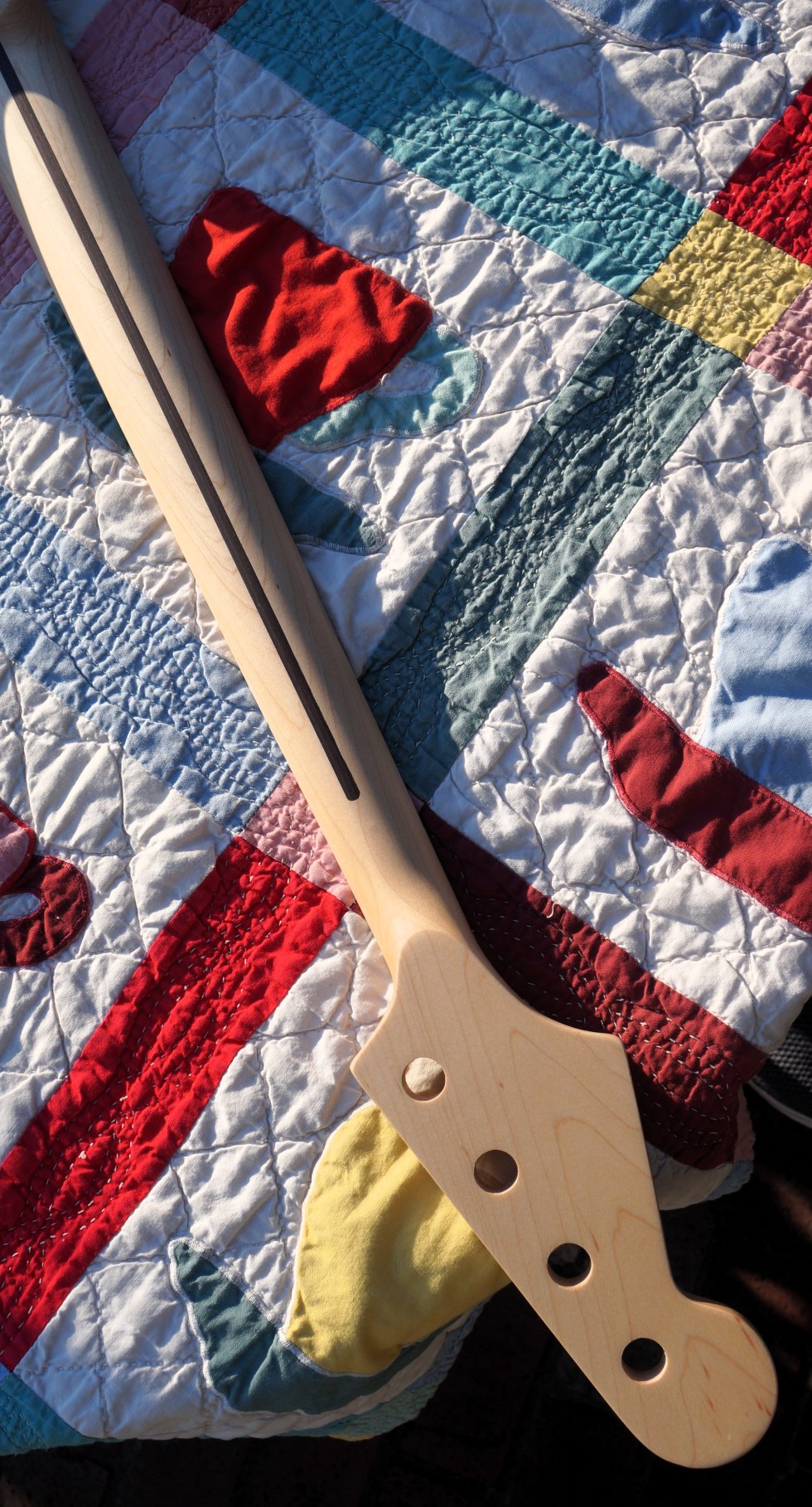

Nice, though decorative only, ‘skunk stripe’ looks cool.

But it surely does look pretty, straight, and smooth, frets included.
DSC06458
You can see how much more asthetic the Kmise headstock is compared to Behringer’s blobby design-though it played and sounded OK.

DSC06459

Those are schmeers, not scratches, condition is near new.

I followed the original holes when I drilled the neck for the bolts* so the off center position came from the factory.

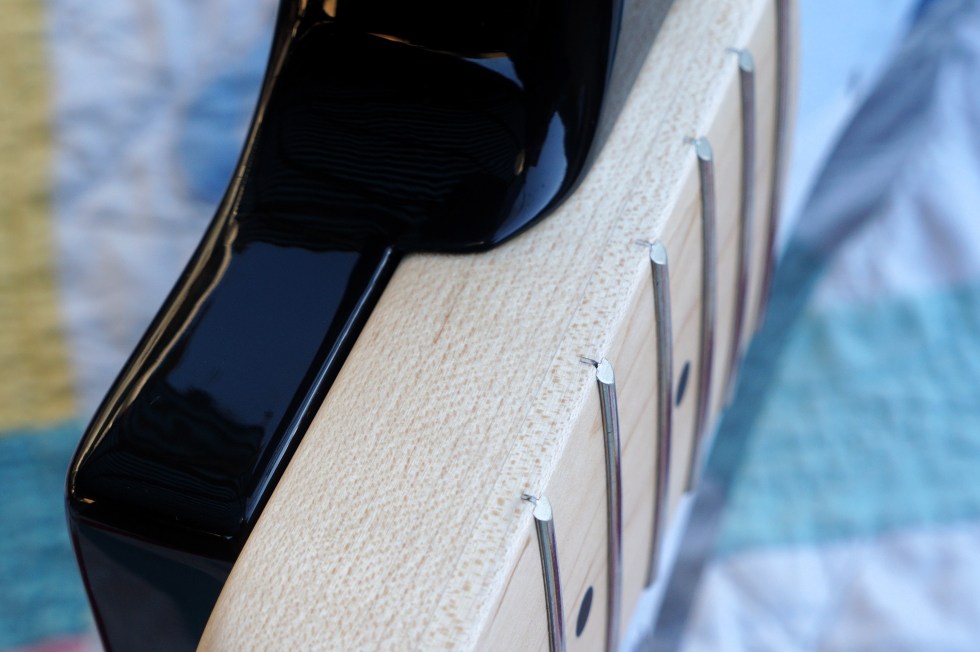

The new neck’s fit is 100% perfect in the neck pocket and I torqued the life out of the Phillips head screws so I expect it to vibrate nicely.
DSC06455DSC06453
Tuner holes come a bit undersized, requiring some Dremel Moto-tool hogging out. I made them a bit oval but nobody except me will ever know. Well, and you now.


DSC06463

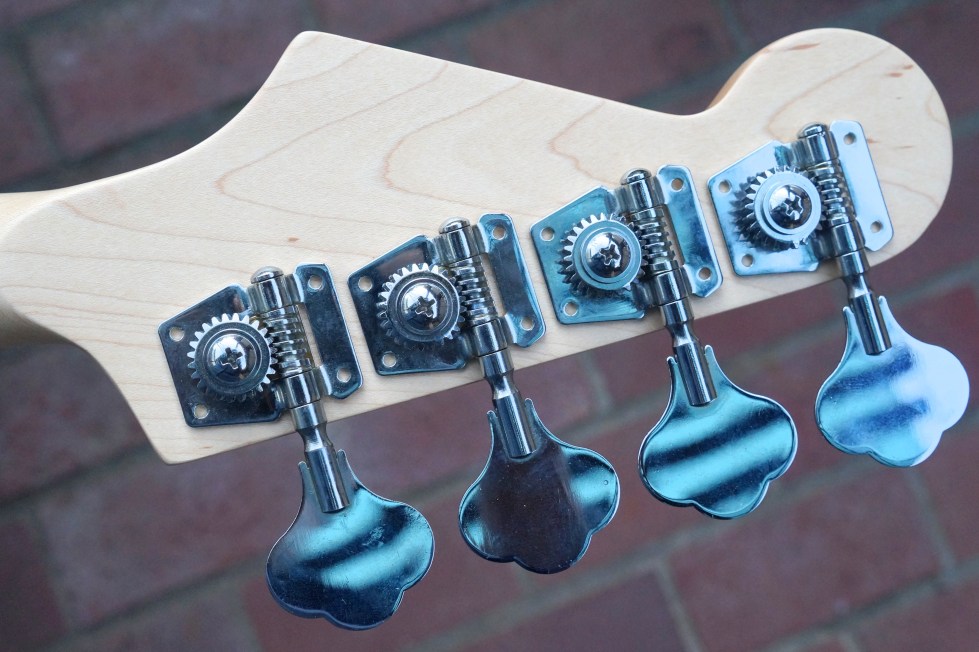

Positioning the tuners, I tapped a knitting needle in to mark the new holes.
DSC06464
DSC06457
Here’s everything I saved to put back on the new neck.

DSC06452

Still unsure about where to drill the hole for the string tree. Maybe it won’t be necessary with the narrow J neck?

I have a genuine Fender P-bass strung with a set of fabulous Thomastik-Infeld (TI) Jazz Bass flatwound strings- low tension, super smooth and quiet (and expensive!).

So for this build I bought D’Addario XL regular light Nickel Wound roundwound strings, bright but also noisy-with my primitive playing anyway.
DSC06448
The strings should accentuate the bright maple neck so I expect this bass to be ringing, sustaining, forceful and melodic with piano like tones.
DSC06441
This sound will match my style of playing, which is not very bass-like at all. Since I’m not in a band and don’t jam with anybody, it’s just me and my Roland Cube’s drum track.
DSC06446
I don’t really play bass, more like melody, solo, shred, lead bass. I basically noodle up and down the neck playing fake blues and rock using minor, major, pentatonic and blues scales.

I just let my fingers rip with whatever intervals or rhythms suits my poor damaged ears. It’s not normal bass but it is my best therapy these days. I can’t wait to finish it to hear what it sounds like.

*Fender style guitar and bass necks are always called ‘bolt-on’. Why, I don’t know. Because the neck is always fastened to the body with wood screws. Did Leo Fender’s first ax use actual bolts? Tradition? It’s a mystery.
